The problem
You’ve got a dry sprinkler, and something bad has happened to its escutcheon. Maybe the outer skirt or ring has gone missing, the escutcheon has corroded, or it has been painted or damaged during a renovation project. Now, you need to replace it, but you can’t seem to easily find the specific part online.
Why this matters

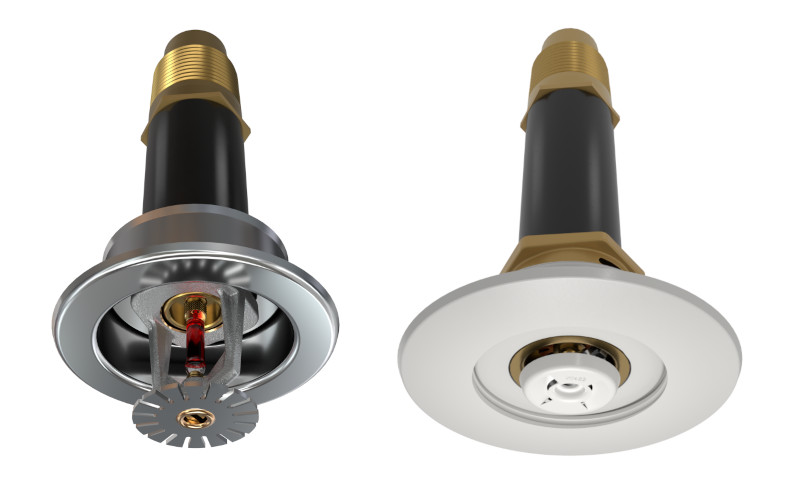

If a dry sprinkler escutcheon is for a recessed installation or the sprinkler is an uncommon dry flush-style sprinkler, you must replace the escutcheon or face a system deficiency tag after an inspection.
NFPA 25 requires replacing escutcheons for these two types of installations. And, in addition to previously calling out missing escutcheons, the 2026 edition of the standard added more replacement conditions in section 5.2.1.1.5:
(1) Physical damage
(2) Corrosion detrimental to sprinkler performance
(3) Loading detrimental to sprinkler performance
(4) Paint, other than that applied by the sprinkler manufacturer, detrimental to sprinkler performance

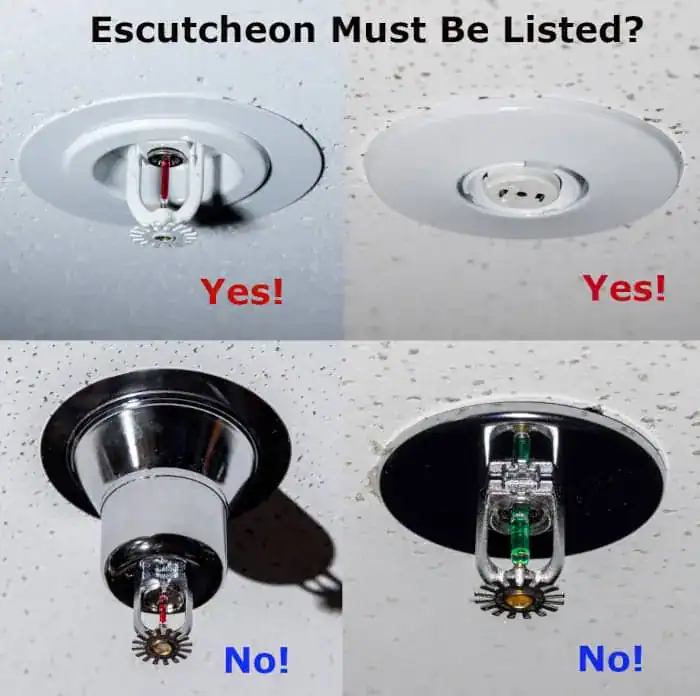

These rules are in place mainly because recessed and flush-style sprinkler escutcheons are part of the listed sprinkler assembly, and anything that happens to them could affect the sprinkler’s position and spray pattern. If a listed replacement escutcheon cannot be obtained, both the sprinkler and escutcheon may need to be replaced to maintain a listed installation.

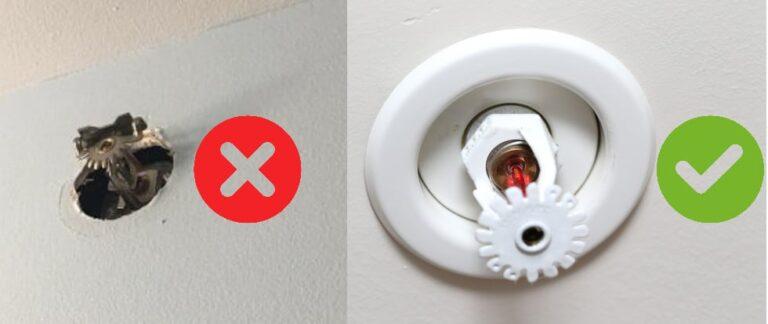

If you don’t need a listed escutcheon, a missing or damaged part won’t be an inspection violation. But the sprinkler installation will still look ugly and unfinished, with missing models leaving a big gap in the ceiling or wall.
The fix
The solution is to identify the correct escutcheon part number for your sprinkler. For Tyco and Viking dry sprinklers: Just determine the sprinkler’s sprinkler identification number (SIN), then refer to its data sheet to find the compatible escutcheons. For example, let’s say you need a replacement recessed white escutcheon for a Tyco TY3255 dry pendent:
- Go to the QRFS product page or Tyco’s page for the sprinkler.
- Look at the sprinkler’s data sheet (linked at the bottom of QRFS product pages)
- On the last page under “Replacement Escutcheons,” it shows the escutcheon types and part numbers: a white recessed escutcheon for a TY3255 is a 56-701-4-010.
- Type the part number into the QRFS search bar, click on the product page, and order the escutcheon.
- If we don’t have the model you need online, we can get it for you! Just contact us.
Unfortunately, Reliable and Victaulic data sheets are not as precise.
For example, Reliable only lists “standard,” “HB,” or “recessed” escutcheons on the data sheet for its Model F3QR56 Series dry sprinklers, without assigning a standalone part number on the data sheet. In these cases, you can contact the manufacturer or get in touch with QRFS — we’ll help you get the right part!
Last thing: if the replacement escutcheon is not listed, you’ve got numerous options among unlisted models, including standard/one-piece escutcheons, split-ring retrofit models, and adjustable skirt-and-cup escutcheons.
Popular products
FAQs
Because recessed escutcheons are part of the listed sprinkler assembly, as are escutcheons for less common “flush-style” sprinklers. Damage, corrosion, detrimental loading, improper paint, or missing components may require replacement under NFPA 25.
Identify the sprinkler SIN on the deflector (or other markings indicating the model for pre-2001 sprinklers), locate the manufacturer’s data sheet, and review the replacement escutcheon section for compatible part numbers.
Some manufacturers, such as Reliable and Victaulic, do not always provide standalone replacement part numbers on their data sheets. In those cases, contact the manufacturer or QRFS for assistance.
If it’s recessed or part of a flush-style sprinkler, you’ll need to replace both the sprinkler and escutcheon with a new listed assembly. If not, you have more options—and QRFS can help.
