The problem
You’ve got missing, damaged, painted, or corroded escutcheons—and now you’re staring at a sticker-shock-inducing quote to replace them.
It’s a small, inexpensive trim piece. But most of the cost isn’t in the parts—it’s in the labor. To replace an escutcheon the standard way, a qualified fire protection contractor must drain the system, remove the sprinkler, swap the escutcheon, reinstall the head, and recharge the system. The part itself might only cost a few bucks. But the labor can cost hundreds—or thousands—depending on how many need replacing, the system, and where you’re located.
So, the next question is: Can you avoid draining the whole system just to replace a ring?
Why this matters
Over time, escutcheons (usually, their outer rings) can go missing due to vibrations or tampering, leaving an unsightly, unfinished gap around a sprinkler. In addition, listed escutcheons—those surrounding recessed or flush-type sprinklers—that go missing or get damaged, painted, corroded, or loaded must be replaced to pass inspection.
Unfortunately, while most escutcheons are relatively inexpensive parts, the total bill to replace them can be costly—it’s a lot of work, time, and expense to replace a simple part, given the hourly fees of fire protection pros.
There is an alternative—retrofit escutcheons—that is much quicker and costs a lot less. But you need to know when you can use this option!
The fix

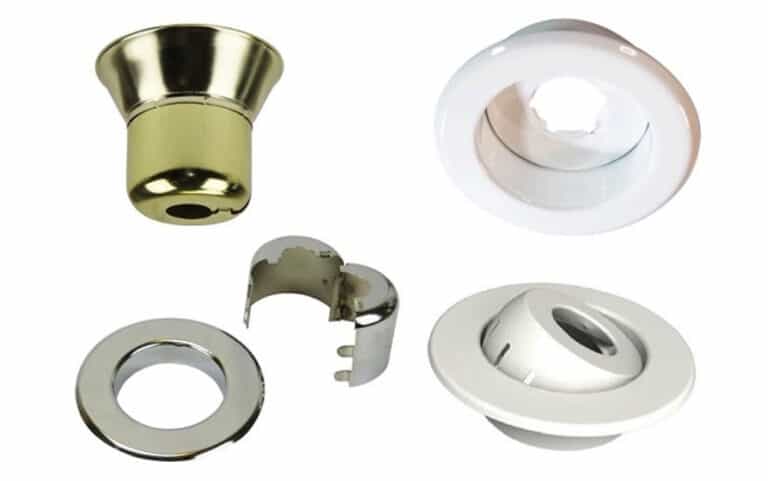

Retrofit escutcheons feature a split, two-piece inner ring or cup. This design allows removing and replacing an escutcheon without having to drain the system and remove the sprinkler first. Installers can cut off the old single-piece or inner escutcheon (if it’s not a split model) and snap in and assemble the new retrofit version.
So, what’s the catch, and why aren’t these always used?
Unfortunately, split retrofit escutcheons aren’t made by sprinkler manufacturers and aren’t listed, which means they aren’t tested and certified to work as part of the sprinkler assembly. And NFPA 13 (2025: 16.2.5.2) and NFPA 25 (2026: 5.2.1.1.5) require using either metal or listed escutcheons—and always listed models for certain installation and sprinkler types:
- Recessed escutcheons used for recessed sprinklers must be listed.
- So do escutcheons that surround specific “flush-style” sprinklers.
So, you have the green light to replace any unlisted metal escutcheons with retrofit models. But if you need to replace a listed recessed or flush escutcheon, you can’t go split-ring retrofit—with one possible exception.
NFPA standards give authorities having jurisdiction (AHJs) some discretion to approve alternative materials and methods if they determine that a solution will not negatively affect fire protection goals. So, you could ask your local AHJ if a specific retrofit version of a recessed escutcheon can be used. This approach doesn’t apply to listed flush escutcheons, as no retrofit versions of them are manufactured.
Buyer’s guide

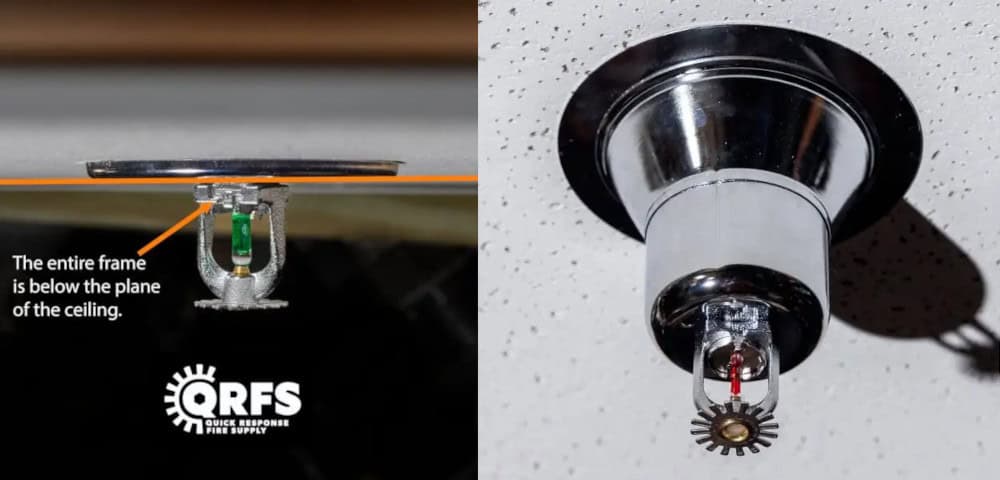

If the sprinkler’s frame visibly projects entirely out of the ceiling or wall, it does not use a listed recessed or flush escutcheon; you can choose a split retrofit escutcheon that matches the size and installation type. Below are examples of unlisted escutcheons:

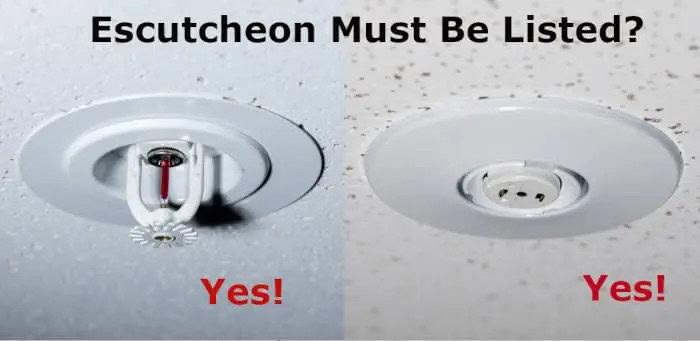

If the sprinkler is recessed or the escutcheon is for a flush-style sprinkler, like the examples shown below, the rules say you must use a listed escutcheon:
However, you might be able to use an unlisted split retrofit escutcheon for a recessed sprinkler if you ask your AHJ and they give explicit approval. Do not purchase and use unlisted retrofit escutcheons for recessed sprinklers without AHJ approval.
Product recommendations
FAQs
Can I replace any escutcheon with a split-ring retrofit model?
No. You can only use split retrofit escutcheons where the sprinkler’s frame is fully exposed—the frame projects completely out of a ceiling or wall. Otherwise, NFPA standards require the use of listed escutcheons for recessed installations or flush-style sprinklers.
Why does replacing a simple escutcheon require draining the system?
Regular escutcheons that have a one-piece inner ring or cup sit between the sprinkler frame and fitting, which requires removing the sprinkler to replace it. That means draining and recharging the system, which drives up labor costs. Split-ring versions can snap around this point.
Can I use a split retrofit escutcheon on a recessed sprinkler?
Not unless you receive explicit approval from your local AHJ. NFPA requires listed escutcheons for recessed installations, and all of the listed manufacturer versions (currently) have only one-piece inner rings.
Are escutcheons for flush-style sprinklers available in split retrofit versions?

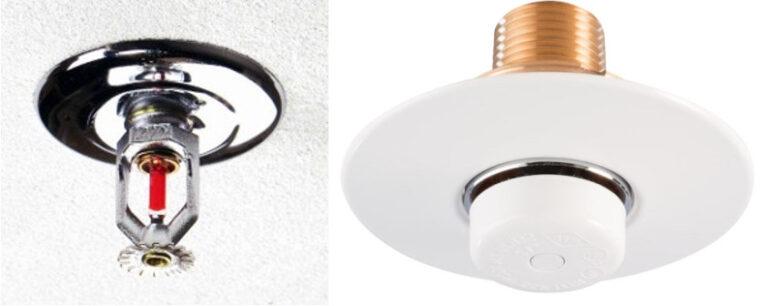

No—at least not for the listed escutcheons with this name. There are no retrofit pieces manufactured for the “flush-style” sprinkler types, where most of the sprinkler is hidden inside an assembly. However, manufacturers sometimes call some of their escutcheons “flush,” even when they refer to unlisted models. Read this blog to clear up any confusion!
