The problem

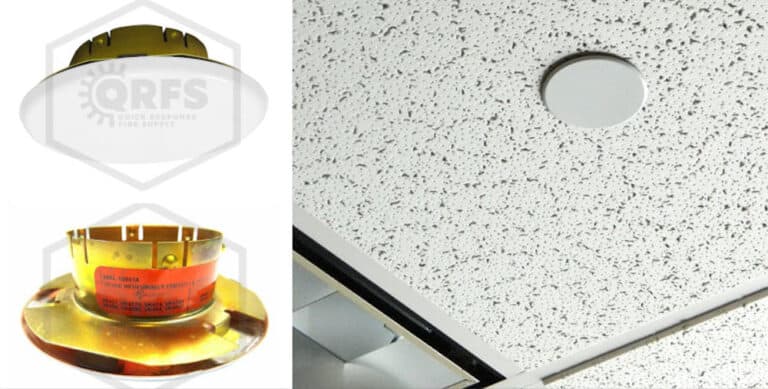

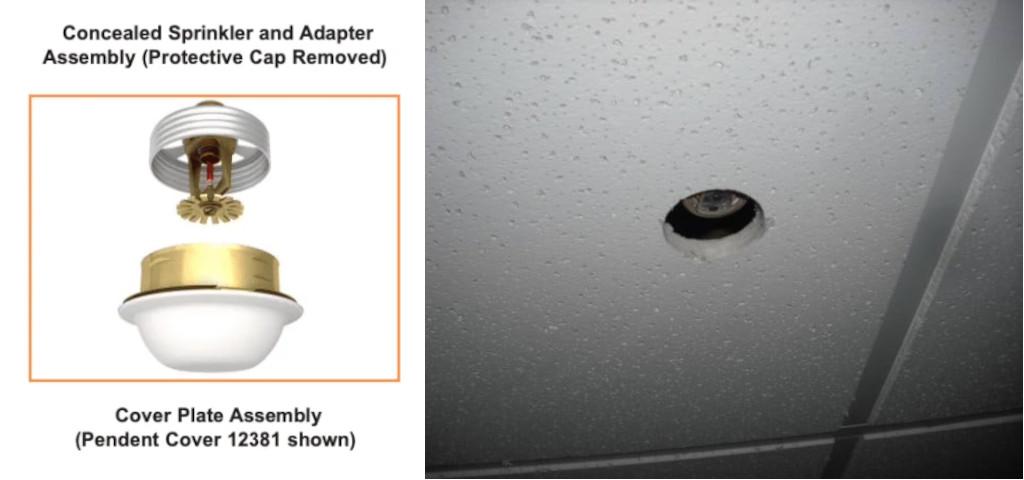

The cover plate that hides your concealed sprinkler no longer sits flush with the ceiling—or worse, it won’t attach at all.
This can happen when the building settles and ceilings sag over time, especially with suspended (“drop” or “false”) ceilings. While the ceiling lowers, the sprinkler and the supply pipe it’s connected to stay in place, leaving a gap between the cover and the ceiling, or making the installation of a cover impossible.
The situation creates two major issues: it looks bad and, more seriously, it may compromise fire protection. A sprinkler that’s sunken too far into a ceiling might have its spray pattern blocked, increasing the risk of water failing to reach a fire.
Why this matters
Ceiling creep can just cause cosmetic issues, but it can also be dangerous if it blocks proper sprinkler operation. Without a correctly installed cover plate, you can’t be sure the sprinkler is in the right position. NFPA 13: Standard for the Installation of Sprinkler Systems warns:
If the cover plate is missing, the possibility exists that the concealed sprinkler and cup are not installed at the required elevation with the ceiling to achieve proper water distribution. In some cases, improperly installed concealed sprinklers have discharged above the ceiling, preventing water from reaching the fire. — NFPA 13 (2025), Section 7.2.6.2 explanatory text
NFPA 25, the inspection, testing, and maintenance standard, also requires replacing covers if they are missing (2023 edition: 5.2.1.1.5). So, you’ve got another problem if a cover no longer attaches at all.
Ill-fitting or missing covers aren’t just ugly—they could risk lives and property and cause you to fail a fire inspection.
The fix
System owners are limited to using the “listed” cover plates that match their concealed sprinklers:
Cover plates used with concealed sprinklers shall be part of the listed sprinkler assembly. — NFPA 13, 7.2.6.3

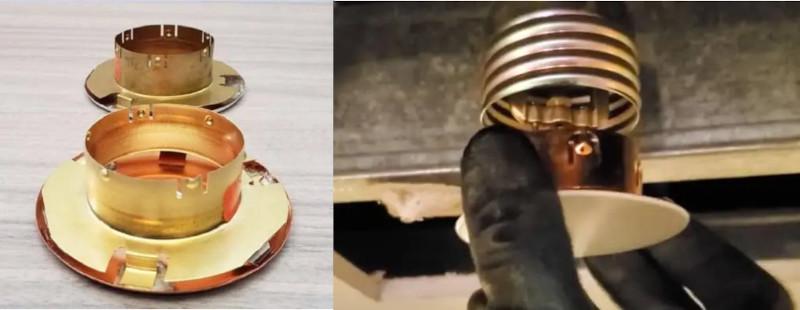

So, first, you can try adjusting the cover plate you have—most are designed with 1/2″ to 1” of flexibility in how far they twist or push into a concealed sprinkler’s cup.
If the gap is too large for adjustment, there are a couple of parts that can help:
- Sprinkler extensions: These brass extensions screw into the existing sprinkler drop that connects the sprinkler to the supply pipe, adding 1/2″ to 2” in length to bridge the distance.

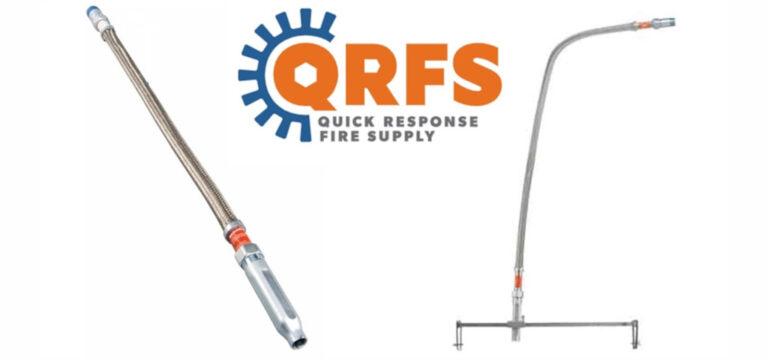

- Flexible sprinkler drops: “Flex drops,” aka “sprinkler whips,” replace rigid piping with long, bendable hose assemblies, offering far greater range but costing more and requiring system hydraulic calculations to account for increased friction. The system may require higher water pressure or sprinklers with larger K-factors to accommodate the change—consult a fire protection pro!
Either method may realign the sprinkler with the ceiling, restoring both a clean look and effective fire protection.
Buyer’s guide
Sprinkler extensions are typically the easier and more affordable solution. Choose:
- The correct length: Extensions are available from 1/2″ to 2” in 1/4″ increments.
- The correct sprinkler connection size: Most sprinklers use 1/2″ NPT or 3/4″ NPT threads.
Flexible drops can work for far longer distances (28” to 71”) or complex installations—but they come with higher costs and need engineering considerations due to increased friction working against water pressure (a pro must make the decision). You must also choose the right sprinkler size when picking a flex drop (1/2″ NPT or 3/4″ NPT).
Very important: Always consult a qualified fire protection professional before making changes. For one thing, systems must be drained by a pro before they remove and install sprinklers!
Product recommendations
FAQs
Can I just buy a longer cover plate?
Usually, no. NFPA 13 requires that listed cover plates match the listed concealed sprinkler assembly. However, some manufacturers make multiple cover plates for the same sprinkler, so you can check if one of them has a greater adjustment range. This solution is uncommon and unlikely to make up for significant gaps, however. QRFS can help review any options.
Why did my ceiling move in the first place?
Buildings can settle due to gravity, aging materials, and structural shifts, and suspended ceilings are naturally more flexible and often move over time.
Is a gap between the ceiling and cover plate just a cosmetic issue?
Not necessarily. Especially if the distance is so large that the cover can’t attach at all, the ceiling may block the sprinkler’s spray, stopping water from controlling a fire.
Do I need a professional to install a sprinkler extension or flex drop?
Yes. Sprinkler systems must be drained before changing components. This must be done by a qualified (and sometimes licensed) fire protection professional who knows what they are doing!
