#176 – Guide to Dry Sprinkler Systems, Part 5: Daily, Weekly, and Monthly Inspections

NFPA 25’s shorter inspection timelines for dry sprinkler systems

Dry sprinkler systems protect people and property from fires in areas prone to freezing, but this important benefit comes with some strings attached. Since dry sprinklers are more complicated than wet sprinkler systems and regularly exposed to harsh environments, extra care is required to maintain reliable fire protection.

In this blog, we explain the guidelines for daily, weekly, and monthly inspections found in NFPA 25: Standard for the Inspection, Testing and Maintenance of Water-Based Fire Protection Systems. Stay tuned for the next installment, covering quarterly and annual inspections, as well as inspections that can stretch longer than every year.

Check out previous installments in our dry sprinklers series:

A Guide to Dry Sprinkler Systems, Part 1: System Overview

A Guide to Dry Sprinkler Systems, Part 2: Components and Installation Requirements

A Guide to Dry Sprinkler Systems, Part 3: Installation of Dry Pipe Valves, Check Valves, and Quick-Opening and Antiflooding Devices

A Guide to Dry Sprinkler Systems, Part 4: Installation of Air Compressors and Air Maintenance Devices

Are you looking to buy components for your building’s sprinkler system? QRFS offers a range of dry sprinkler heads available on special order. Simply give us a call at 888.361.6662 or email support@qrfs.com.

You can also view our in-stock selection of sprinkler gauges, valves, supervisory switches, and other accessories.

Dry sprinkler inspections: before we begin

The 2017 edition of NFPA 25 establishes minimum requirements for the periodic inspection of dry sprinkler systems. Dry systems avoid frozen pipes that plague wet sprinkler systems by filling the network with pressurized air or nitrogen instead of water. The gas holds a dry valve closed until the heat from a fire activates a sprinkler head, releasing the compressed air, opening the valve, and enabling the water supply to flow into the pipes and onto the fire.

Programs that meet NFPA 25’s inspection requirements are ongoing, maintaining weekly and even daily interaction with the dry system during cold temperatures. The inspection involves a visual once-over of the system’s status, looking to see if it’s free of physical damage and appears to be in operating condition. Any type of damage could compromise the integrity and operation of your system, rendering it ineffective during a fire.

Let’s get some housekeeping out of the way: NFPA 25 (4.4) requires all water supplies, including fire pumps, to remain in service during system inspections, except under specific circumstances. And allows inspectors to substitute automated inspection equipment for visual inspections as long as the desired outcomes are achieved.

Inspection is generally followed by more in-depth testing, which will be addressed in a future blog and requires qualified personnel to physically operate the system or one of its parts to make sure it performs to an acceptable standard.

NFPA 25 establishes that it’s the responsibility of property owners or their representatives to ensure that sprinkler systems are functioning properly, but grants the ability to delegate authority to a representative and specifies that inspection, testing, and maintenance be performed by a qualified professional.

However, since some inspections are ideally conducted on a daily basis and the ultimate liability rests with the owner, it’s wise to familiarize those located at the property with the facility’s systems so they know how to spot damage as well as understand what the professionals are looking for during inspections. In addition, they should know what actions to take in the event of a problem that constitutes an emergency, when it’s unlikely a sprinkler contractor will be present.

From the 2017 Edition of NFPA 25

4.1.1* Responsibility for Inspection, Testing, Maintenance, and Impairment. The property owner or designated representative shall be responsible for properly maintaining a water-based fire protection system.* Inspection, testing, maintenance, and impairment procedures shall be implemented in accordance with those established in this document and in accordance with the manufacturer’s instructions. Inspection, testing, and maintenance shall be performed by qualified personnel.* The owner shall coordinate with the entity conducting the inspection, testing, and maintenance activities to minimize any water damage caused by the discharge of water.* Where the property owner or designated representative is not the occupant, the property owner or designated representative shall be permitted to delegate the authority for inspecting, testing, maintenance, and the managing of impairments of the fire protection system to a designated representative. Where a designated representative has received the authority for inspecting, testing, maintenance, and the managing of impairments, the designated representative shall comply with the requirements identified for the property owner or designated representative throughout this standard.

While it’s also important to follow specific manufacturer instructions, NFPA 25 recommends timelines for how often various dry sprinkler components should be inspected. Here’s an overview of what should be done:

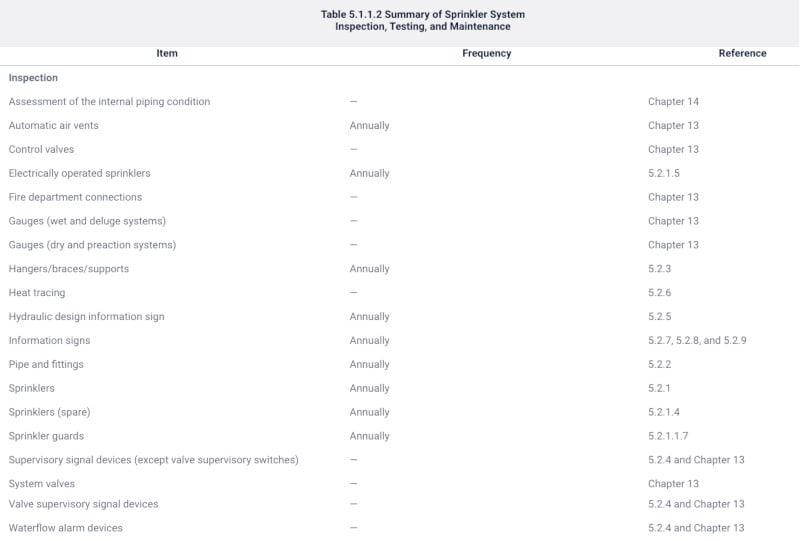

NFPA 25 inspection timeline dry systems
Source: NFPA 25

Daily and weekly inspections: valve enclosures, control valves, fire pump conditions, and water storage tanks during freezing temperatures

Inspecting valve enclosures and water tanks

For any parts of dry sprinkler systems containing water, 4.1.2 mandates that property owners maintain a minimum temperature of 40°F (4°C) to protect them from freezing conditions unless an approved antifreeze solution is used. That includes daily inspection during cold weather of the enclosure that protects the dry valve, since the piping beneath it holds water during normal operating conditions, as well as heating systems in water storage tanks that lack low-temperature alarms and help protect frequently-occupied property. The tank’s water temperature must also be checked weekly when an area’s mean temperatures fall below 40°F (4.0°C) if low-temperature alarms aren’t present.

The frequency of inspections can stretch to weekly, however, for valve enclosures supervised by a low-temperature alarm that would prompt property owners to investigate a deteriorating situation. NFPA 25 also requires low-temperature alarms to be inspected annually to ensure they are working properly.

From the 2017 Edition of NFPA 25 Valve enclosures subject to freezing shall be inspected daily during cold weather to verify a minimum temperature of 40°F (4.0°C). Valve enclosures equipped with low temperature alarms shall be inspected weekly. Low temperature alarms, if installed in valve enclosures, shall be inspected annually at the beginning of the heating season to verify that they are free of physical damage.

Inspecting control valves

Closed control valves are the leading cause of failure in water-based fire protection systems and NFPA 25 ( recommends weekly checks. However, inspection times for valves secured with locks or supervised in accordance with applicable NFPA standards can be increased to monthly (, and control valves that are electrically supervised can be inspected quarterly (—although the alarm device itself must be inspected quarterly as well (* The valve inspection shall verify that the valves are in the following condition:

(1) In the normal open or closed position
(2)* Sealed, locked, or supervised
(3) Accessible
(4) Post indicator valves (PIVs) are provided with correct wrenches
(5) Free from external leaks
(6) Provided with applicable identification

Again, this diligence is required because closed control valves are the primary way sprinkler systems malfunction in an emergency. Supervision reduces the inspection requirements because it will alert someone if a valve is tampered with or a contractor has left it closed after maintenance or testing. Watch this video for step-by-step instructions on how to inspect a control valve:

Inspecting fire pumps

For systems that require fire pumps to provide the water pressure needed to meet system demand, weekly inspections of pump conditions ensure proper operation and prevent freezing in the pipes that safeguard pump rooms. Electrical, diesel, and steam pumps all have different weekly inspection requirements, which we addressed in detail in a previous blog on fire pump inspections.

8.2.2* The pertinent visual observations specified in the following checklists shall be performed weekly:

(1) Pump house conditions are determined as follows:

(a) Heat is adequate, not less than 40°F (4.0°C) for pump room with electric motor or diesel engine–driven pumps with engine heaters.
(b) Heat is adequate, not less than 70°F (21°C) for pump room with diesel engine–driven pumps without engine heaters.
c) Ventilating louvers are free to operate.
(d) Excessive water does not collect on the floor.
(e) Coupling guard is in place.

(2) Pump system conditions are determined as follows:

(a) Pump suction and discharge and bypass valves are fully open.
(b) Piping is free of leaks.
(c) Suction line pressure gauge reading is within acceptable range.
(d) System line pressure gauge reading is within acceptable range.
(e) Suction reservoir has the required water level.
(f) Wet pit suction screens are unobstructed and in place.
(g) Waterflow test valves are in the closed position, the hose connection valve is closed, and the line to test valves is free of water.

Monthly inspections: gauges, dry valves, and air compressors

Inspecting gauges

All gauges should be inspected monthly and repaired and replaced as needed. Damaged gauges—or those not accurate within 3 percent of the full scale—must be immediately recalibrated or replaced. Otherwise, NFPA mandates the replacement or testing of gauges every five years. Frankly, most facilities find it easier and more cost-effective to simply replace gauges instead of recalibrating them, given their low cost.

It’s important to ensure that the gauge on the supply side of the dry valve reveals normal water supply pressure, while the gauge on the system side indicates that the ratio of pressurized air or nitrogen vs. water-supply pressure meets the manufacturer’s instructions. Using a marker pen to record safe pressure ranges on the gauge’s face cover helps keep that information readily available.

There are some caveats: higher pressure readings on the system gauge are normal when using variable-pressure water supplies. Pressure over 175 psi (12.1 bar) could be caused by fire pump tests, but could also be the result of thermal expansion that needs to be investigated and corrected. (NFPA 25: A.

It’s also worth noting that “normal” water supply pressure could still be too high or too low relative to what’s reasonably expected based on the dry sprinkler’s system design information, a knowledge of the connected water supply, or reading data from past inspections. For instance, A. explains that trapped pressure surges could cause normal water supply pressure on a gauge above an alarm or system check valve to be higher than that of a gauge below it. This is one of the reasons why the design context and accurate history of data are essential.

If a quick-opening device which speeds the operation of the dry valve is present, its gauge should match the pressure reading on the system side of the dry valve. If its gauge reads zero, it could indicate that the device is shut off or inoperative. When the readings don’t match, this may mean there is an obstructed orifice or leak in the isolated chamber of the device. Either condition must be immediately addressed so it doesn’t delay tripping the dry valve and delivering water during a fire.

From the 2017 Edition of NFPA 25* Gauges shall be inspected monthly to verify that the gauge is operable and not physically damaged. Gauges monitoring water pressure shall be inspected quarterly to verify that normal water supply pressure is being maintained. Gauges monitoring air or nitrogen pressure shall be inspected monthly to verify that normal air or nitrogen pressure are being maintained. The gauge on the quick-opening device, if provided, shall indicate the same pressure as the gauge on the system side of the dry pipe valve. Where air pressure supervision is connected to a constantly attended location, gauges shall be inspected quarterly.* For dry pipe or preaction systems protecting freezers with an air pressure gauge(s) on the air line(s) between the compressor and the dry pipe or preaction valve, the air pressure gauge near the compressor shall be compared monthly to the pressure gauge above the dry pipe or preaction valve. When the gauge near the compressor is reading higher than the gauge near the dry pipe valve, the air line in service shall be taken out of service and the alternate air line shall be opened to equalize the pressure. An air line taken out of service in accordance with shall be internally inspected, removed of all ice blockage, and reassembled for use as a future alternate air line.* Gauges shall be replaced every 5 years or tested every 5 years by comparison with a calibrated gauge. Gauges not accurate to within 3 percent of the full scale shall be recalibrated or replaced.

Inspecting dry pipe valves

The dry valve is arguably the most critical component of a dry sprinkler system, preventing the pressurized water in the fire mains from entering the sprinkler piping unless fires occur. While NFPA 25 requires monthly external inspections of the dry valve, enclosure, trim, and other related components for most of the year, the frequency of certain parts increase to weekly and even daily when the temperatures drop. Weekly checks are also wise if your facility has public access or is located in an area prone to vandalism. In fact, some corporate policies require facilities to conduct weekly checks as best practice.

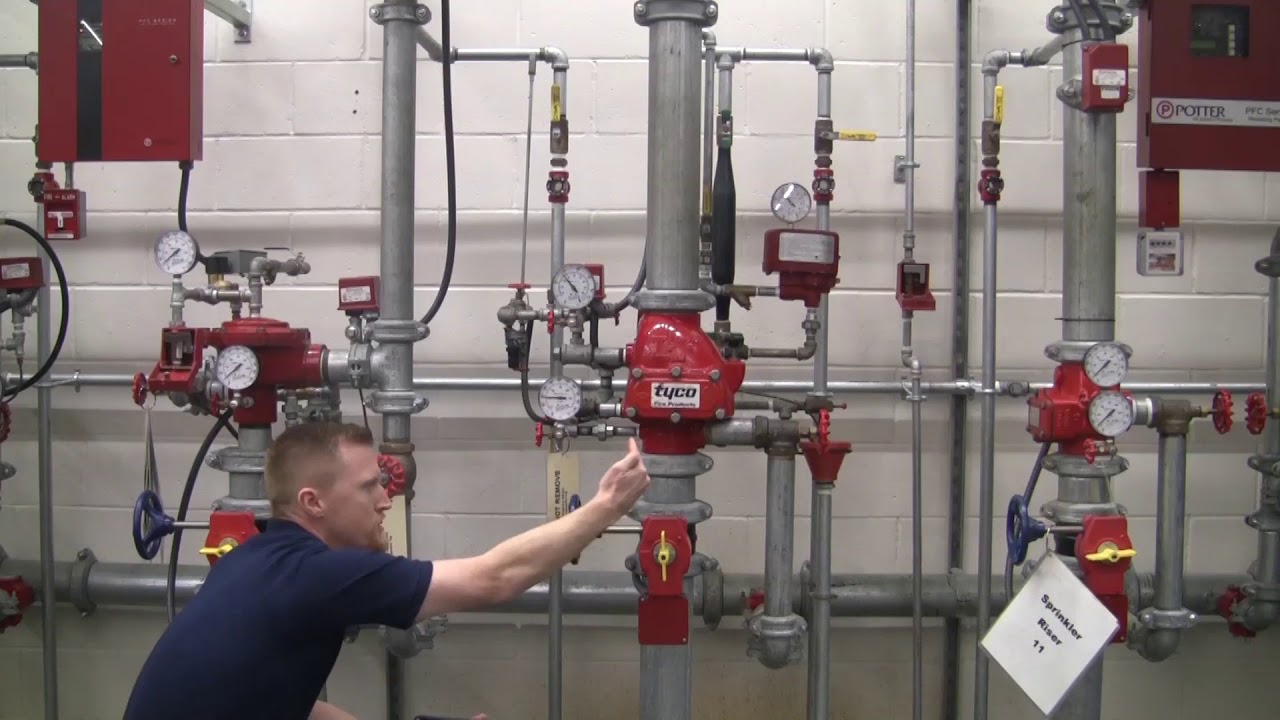

This video from Inspect Point shows how to perform a visual inspection of a dry valve:

External inspections should check for physical damage, ensure that all trim valves are in the appropriate open or closed positions as indicated by the system diagram, and make sure there are no drips or leaks in the valve’s intermediate chamber. Internal checks must be conducted annually, while inspections of strainers, filters, and restricted orifices can take place every five years. Systems with auxiliary drains shall require a sign at the dry valve indicating the number of auxiliary drains and the location of each individual drain. The dry pipe valve shall be externally inspected monthly to verify the following:

(1) The valve is free of physical damage.
(2) All trim valves are in the appropriate open or closed position.
(3) The intermediate chamber is not leaking. The interior of the dry pipe valve shall be inspected annually when the trip test is conducted. Strainers, filters, and restricted orifices shall be inspected internally every 5 years unless tests indicate a greater frequency is necessary.

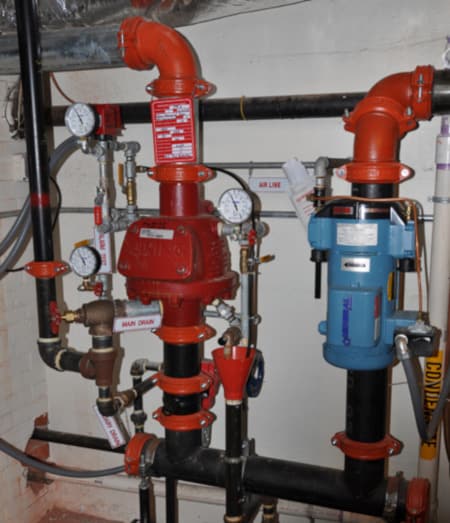

Riser-mounted air compressor
A riser-mounted air compressor (right) and a dry pipe valve (left) in a dry sprinkler system. Source: A.L. Fire Protection

Inspecting air compressors

Air compressors are essential to the proper operation of the dry valve, pressurizing the sprinkler piping so the valve stays closed until the sprinkler is activated by heat. NFPA 25 specifies monthly inspections of air compressors, which tend to vibrate their connections loose during operation. It’s also important to follow your compressor’s manufacturer requirements, which generally include the extra step of checking and draining condensation in the air tank. Sitting water could lead to corrosion that impacts the operation of the entire dry sprinkler system. Air compressors dedicated to water-based fire protection systems shall be inspected monthly to verify the following:

(1) Air compressor is free of physical damage.
(2) Power wiring to the air compressor is intact and free of physical damage.
(3) Piping from the air compressor to the fire protection system is intact and free of physical damage.
(4) The means of anchoring the air compressor to the structure or to the system piping is secure, tight, and free of physical damage.
(5) Air compressors requiring oil have the required amount of oil in the oil reservoir.

Keep your dry sprinkler system working with regular inspections and the right replacement parts

NFPA standards are complex, and inspection timelines can feel onerous and daunting. But at the end of the day, meeting the daily, weekly, and monthly requirements is the best way to ensure that your dry sprinkler system will reliably offer automatic protection during a fire.

Stay tuned for the next installment in our review of dry sprinkler systems and their applications, in which we’ll explore quarterly and annual inspections, as well as inspections that can stretch longer than every year.

Are you looking to buy components for your building’s sprinkler system? QRFS offers a range of dry sprinkler heads available on special order. Simply give us a call at 888.361.6662 or email support@qrfs.com.

We also stock sprinkler gauges, valves, switches, and other accessories that are applicable in dry systems.
