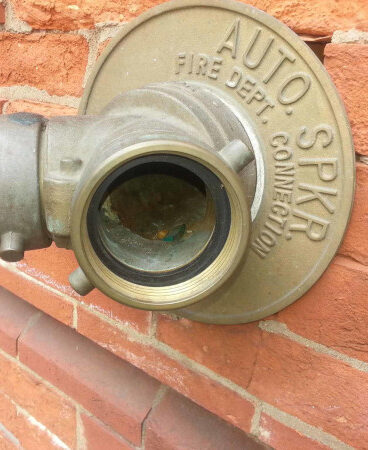

FDC without caps or plugs

Maintaining your building’s FDC is essential

Here’s why and how to do it…

You can find fire department connections (FDCs) in all buildings with standpipes and most with fire sprinkler systems. Located outside the structure, FDCs allow firefighters to connect hoses during a fire to supplement or, in some cases, completely supply the water that a fire protection system needs to do its job.

Fire codes require building owners to maintain FDCs, so they work in an emergency. But doing this has some unique challenges since these devices are exposed to the weather, passersby, and vegetation or objects that can block firefighters from accessing them.

This QRFS page is your guide to FDCs, explaining their essential components, the code and maintenance requirements, and how to replace parts or entire FDCs to stay compliant. Feel free to use the table of contents if you’d like to skip to the section you need!

Different types of FDCs

There are various fire department connections that system designers choose based on where they’re installed and the building’s accessibility, size, systems, and water requirements.

Different installation types:

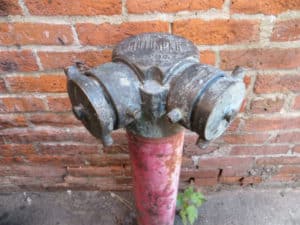

Freestanding

FDCs stand apart from a building, with a vertical supply pipe running into the ground.

Exposed

FDCs jut out from the side of a building; the FDC body is visible, but the supply pipe hides in the wall.

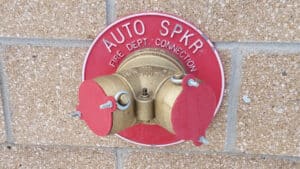

Flush

FDCs are also on the side of a building, but the body and pipe are hidden.

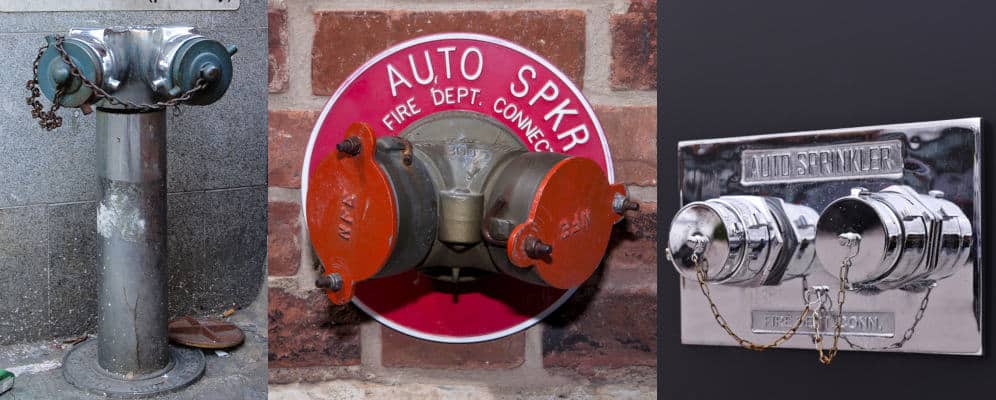

A freestanding FDC (left), an exposed FDC (middle), and a flush FDC. Left image source: Arnoldius, CC BY-SA 3.0, via Wikimedia (Modified)

Different numbers of inlets:

Single-inlet FDCs

These are common in smaller structures.

Double-inlet FDCs

Also common and sometimes called “Siamese connections” when they have an exposed Y-shaped body with identical twin inlets.

More inlets

Some FDCs have additional inlets to accommodate larger and taller buildings and multiple fire protection systems!

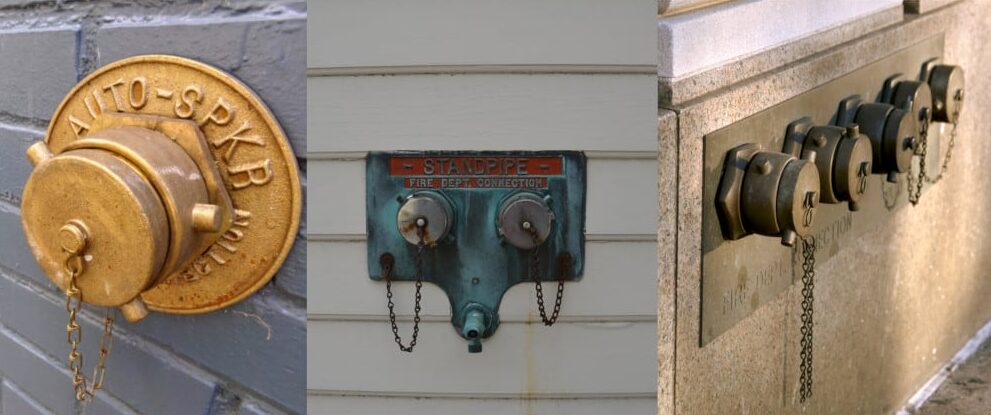

FDCs vary by the number of inlets, though only having one or two is common. Above are various examples of flush FDCs.

The Essential Parts

A complete FDC installation includes the pipe that leads from the FDC to the system and a check valve that ensures one-way water flow. But the fire department connection itself has these main parts:

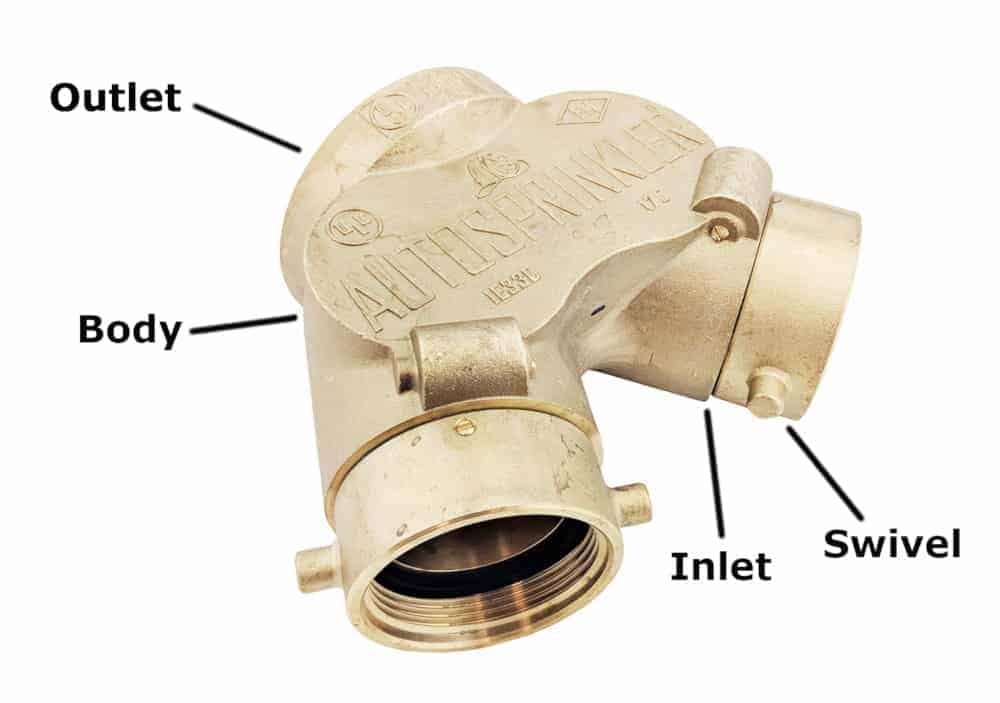

  1. Swivels connect fire hoses to the FDC’s inlets and allow hoses to rotate. Swivels sometimes attach to FDCs via snoots, a female thread adapter.
  2. Inside a swivel is a rubber gasket that enables a water-tight hose seal.
  3. Inlets allow water into the FDC and the system.
  4. The outlet connects the FDC body to the system piping.
  5. The body houses or bridges various parts.

6. Caps or plugs cover the swivels and inlets, protecting the system’s pipe from intrusion by foreign objects.

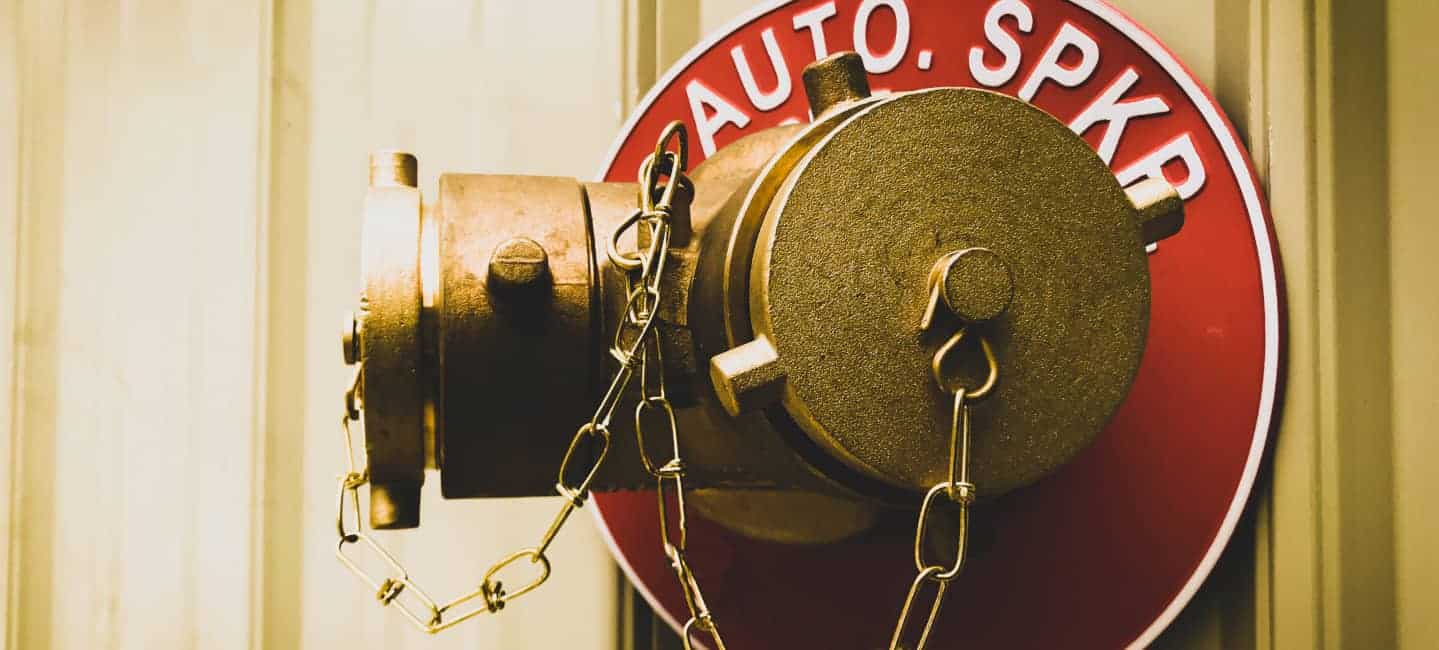

7. FDC plates and signage identify the FDC and the type of system it serves.

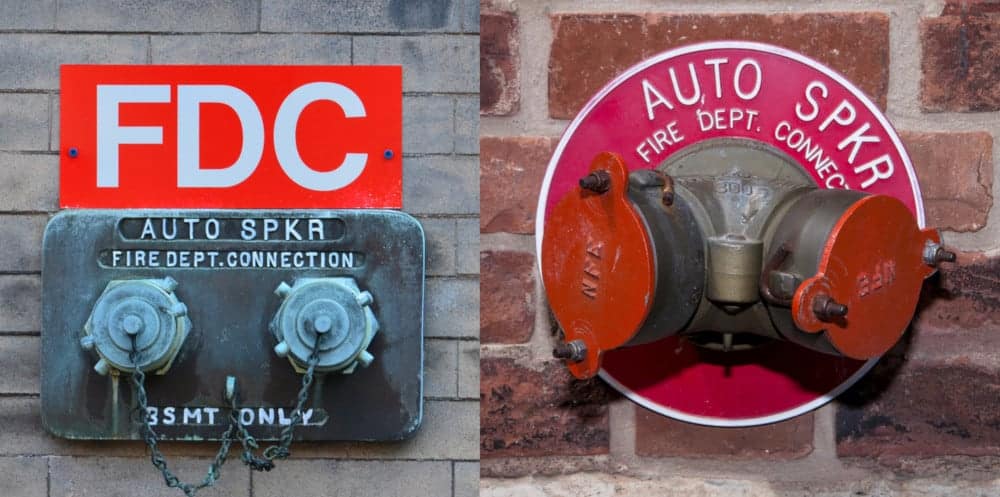

The flush two-inlet FDC on the left has an identification plate indicating that it serves a fire sprinkler system (“AUTO SPKR”), a separate sign clearly pointing out its location to firefighters, and chained plugs covering the swivels and inlets. The exposed Siamese FDC on the right has an identification ring and aluminum caps.
8. Single or double clappers are inside FDCs with more than one inlet. Clappers prevent water from going out of an unused inlet when a fire hose supplies another.

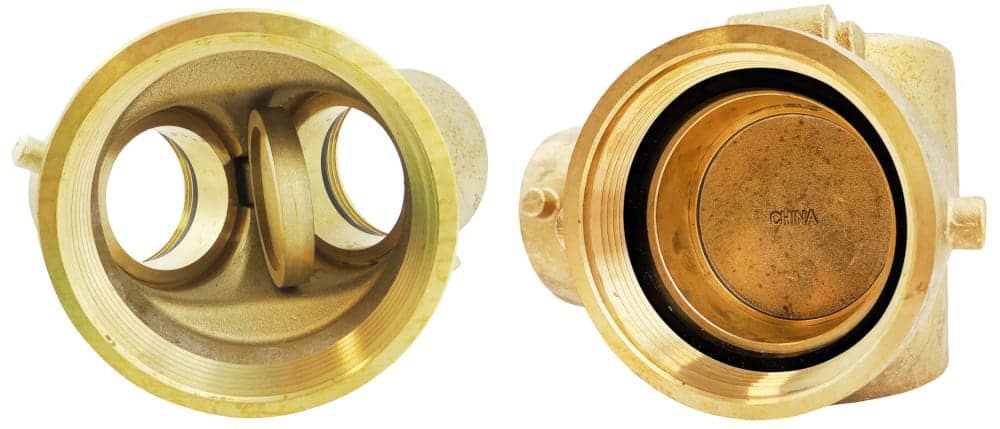

The two-inlet Siamese FDC on the left has a single clapper that swings between the inlets to shut one of them. The double-clapper FDC on the right has individual clappers for each orifice.
For a deeper explanation of FDCs and their parts, check out the following blogs:

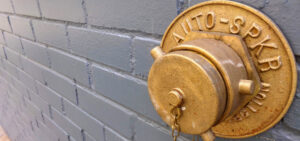

FDC Sizes & Connection Types

Fire department connections come in different connection types, threads, and sizes. If you need to replace an FDC or just buy certain parts for one, getting the sizing and connection right is critical, as local jurisdictions and fire departments have varying standards. The wrong FDC means firefighters won’t be able to hook up their hoses quickly or at all unless they have the adapters.

The back of FDCs (the outlets) commonly connect to the system pipe with 4” or 6″ National Pipe Thread (NPT).

The most common hose connection standard on FDC inlets is 2.5″ National Standard Thread (NST), which is sometimes also called “fire hose thread” or National Hose Thread (NH or NHT).

Nevertheless, certain local jurisdictions use other sizes and connection types, including National Pipe Straight Thread (NPS) or unique regional standards. For example, various parts of New York and New Jersey have hoses and FDCs with New York Corporate Thread (NYC), while 3” New York Fire Department/Fire Department of New YorkThread (NYFD/FDNY) is used in New York City.

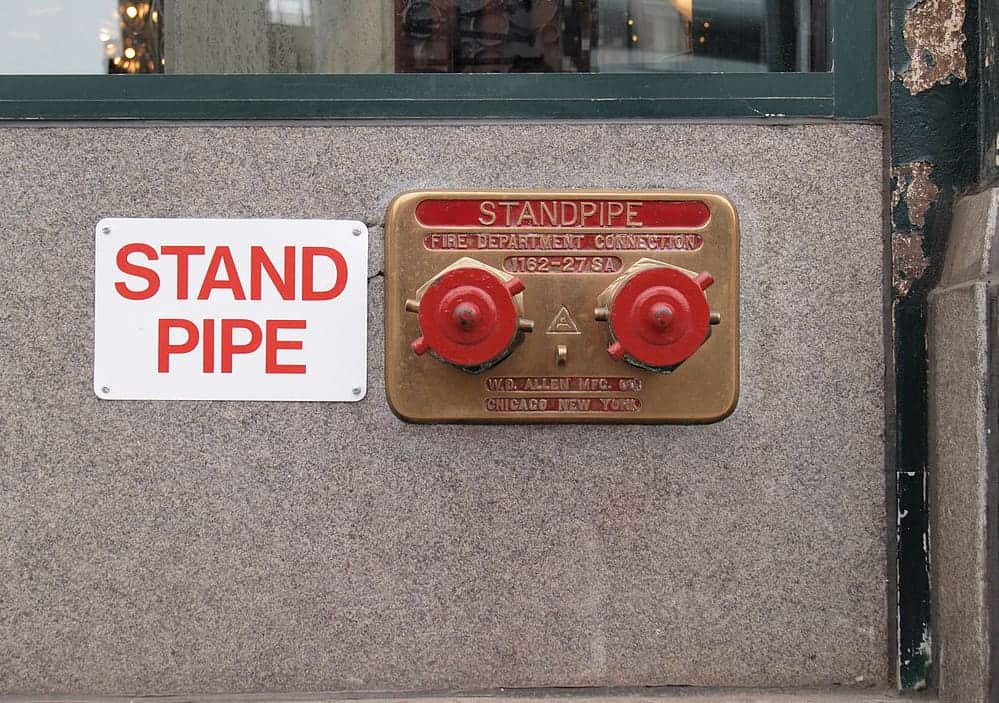

An FDC in New York City with 3” NYFD threads. Image (modified) source: Arnoldius, CC BY-SA 3.0, via Wikimedia

In addition, a growing number of cities now require threadless fittings called Storz connections for some FDCs. Long popular in Europe, Storz connections are genderless fittings that hook up with a push and quarter-turn instead of screwing on.

The bottom line: check with your local government/fire department to see what connection is required before buying an FDC! Read these in-depth guides for more detail:

Required inspection, testing, and maintenance (ITM) for fire department connections

There’s good and bad news about maintaining a fire department connection and keeping it up to code. The good: most of the requirements are simple. The not-so-good: since these devices are outdoors, they’re exposed to the elements, thieves, vandals, and possible obstructions, so you have to inspect them reasonably often.

The 10 items of a quarterly inspection make up most of the ITM requirements in NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems:

From the 2020 edition of NFPA 25

13.8.1 Fire department connections shall be inspected quarterly to verify the following:

1. Fire department connections are visible and accessible.

2. Couplings or swivels are not damaged and rotate smoothly.

3. Plugs or caps are in place and undamaged.

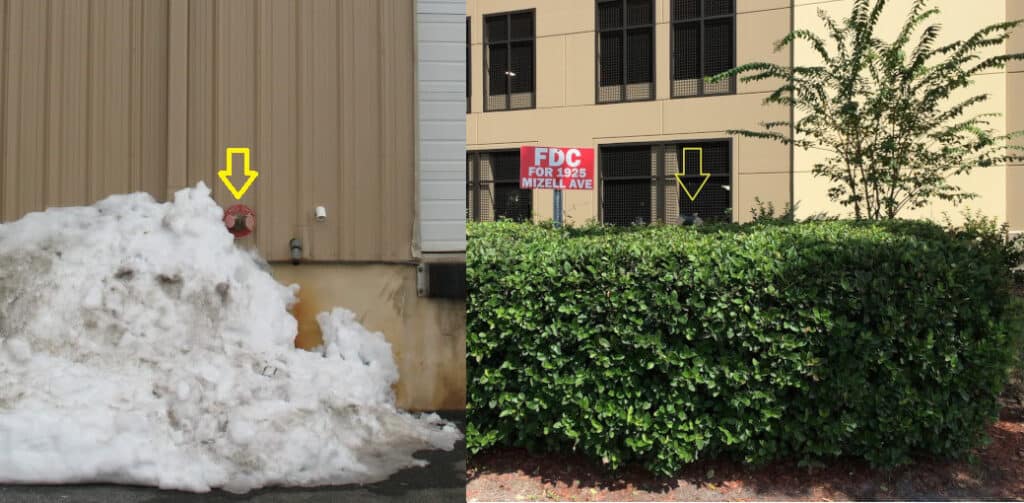

FDCs must be visible and accessible (inspection item #1) — the snow and bushes above are an NFPA 25 violation. Images source: Fire Protection Deficiencies

4. Gaskets are in place.

5. Identification signs are in place.

6. Check valve is not leaking.

7. Automatic drain valve is in place and operating properly.

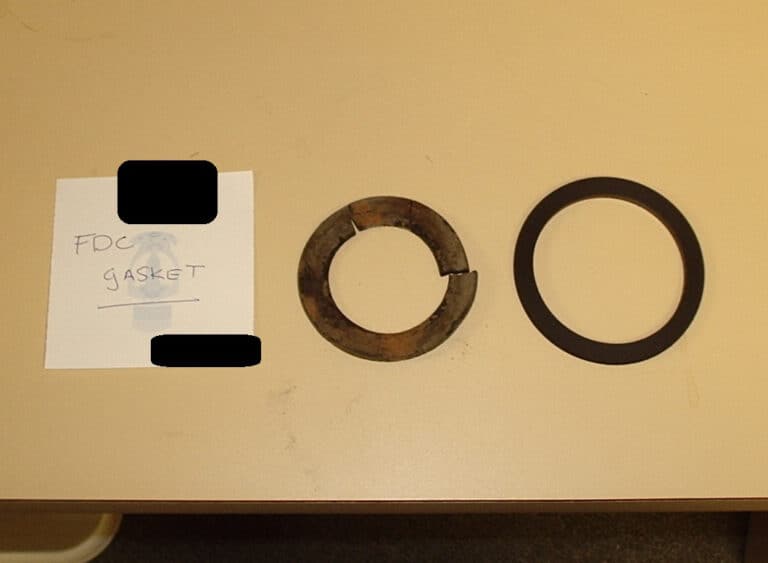

Age and weather can eventually wreak havoc on FDC gaskets within swivels, as illustrated by the one on the left. Image (modified) source: Fire Protection Deficiencies

8. Fire department connection clapper(s) is in place and operating properly.

9. Interior of the connection is inspected for obstructions.

10. Visible piping supplying the fire department connection is undamaged.

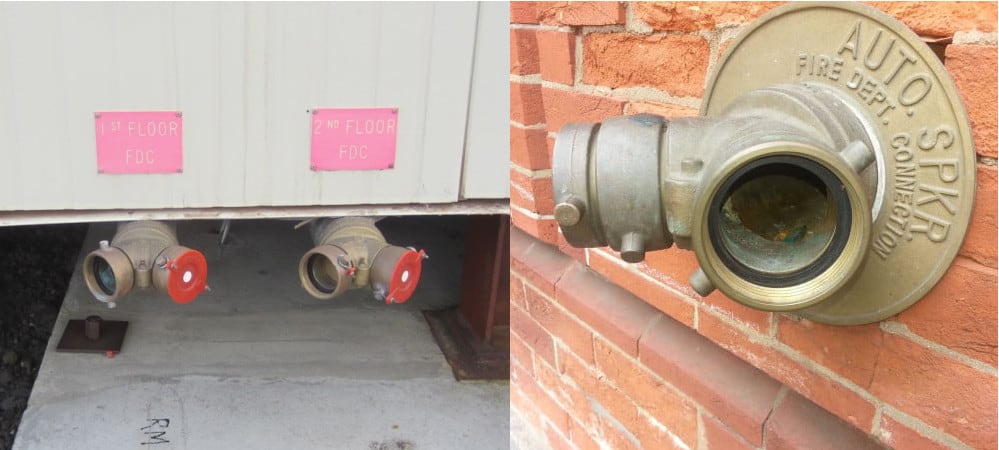

The Siamese connections on the left are each missing a cap (inspection item #3). The one on the right is missing both caps or plugs, and there is a crayon plus other debris in the inlet (inspection item #9). Left image (modified) source: Fire Protection Deficiencies

Note that quarterly item nine, the interior inspection, changes to annually if “approved locking caps or locking plugs are installed” (NFPA 25: 13.8.2). At either interval, any obstructions found during a check must be removed (13.8.4).

If an inspector spots any of the other issues, NFPA 25 requires the relevant parts to be “repaired or replaced as necessary in accordance with the manufacturer’s instructions” (13.8.3).

There is another significant ITM requirement for FDCs: every five years, the “piping from the fire department connection to the fire department check valve” needs a hydrostatic test (13.8.5). A fire protection professional puts extra pressure into the system with a test pump and looks for pressure drops or visible water to identify leaks.

Below, you can read more about hydrostatic testing and additional detail on FDC ITM, including what’s involved in checking supply pipes, check valves, automatic drains, and more:

Replacing FDC plugs, caps, and swivels

FDC swivels and their inlets are protected by either a plug, which screws into the hole, or a cap, which sits atop the orifice to cover it. But people also sometimes use these terms interchangeably.

While there are 10 items on NFPA 25’s quarterly inspection list, missing caps and plugs top the list of code violations, along with FDCs blocked by shrubs or objects.

Caps and plugs go missing due to vandals or thieves; the latter is usually when FDC plugs are made of brass that can be resold. FDC swivels can also disappear for the same reason! Some FDC plugs have locks and chains, while other building owners use inexpensive, breakable plastic or aluminum caps to deter theft.

But just like FDC sizes and connection types, you can’t necessarily just choose a cap or plug and lock them—many jurisdictions have specific rules. So, check what your local authorities allow first since firefighters need to access the FDC inlets in an emergency. In addition, many people order the wrong cap or plug because they mismeasure the opening. It’s crucial to measure the inside diameter of the waterway, not the outside diameter of the swivel or inlet!

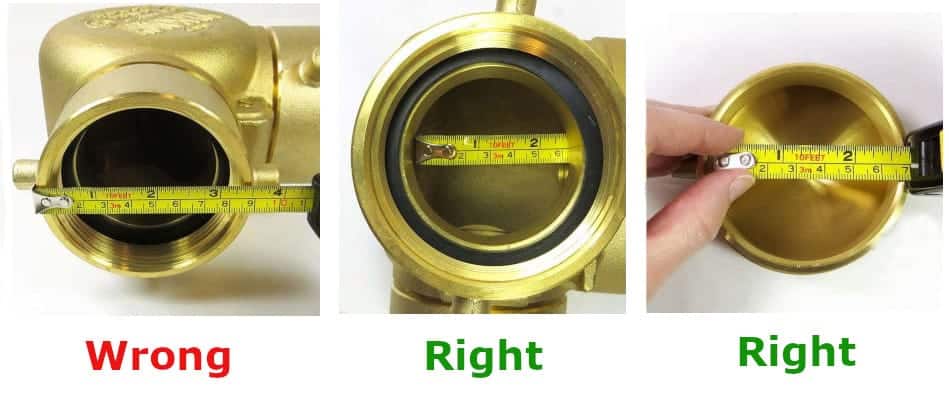

From L to R: improperly measuring an FDC based on the swivel’s outer diameter, correctly measuring the inner waterway, and correctly measuring the inside of a corresponding FDC plug.

Read these blogs, especially #67 — a step-by-step guide to measuring FDCs — before you buy caps or plugs:

Buying fire department connections and parts

Maintaining an FDC shouldn’t be difficult. Quarterly inspections ensuring fire department connections are visible, accessible, properly marked, and otherwise in good shape cover most of what’s required. And if you ever need a replacement part or new FDC, QRFS has you covered with approved equipment, competitive prices, and fast shipping!
